358 anti climb security fence

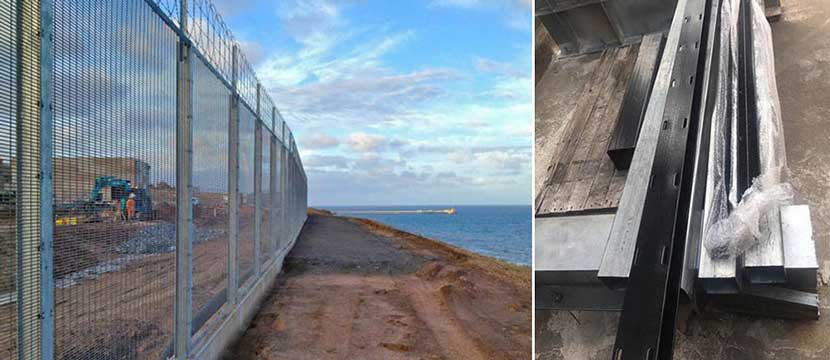

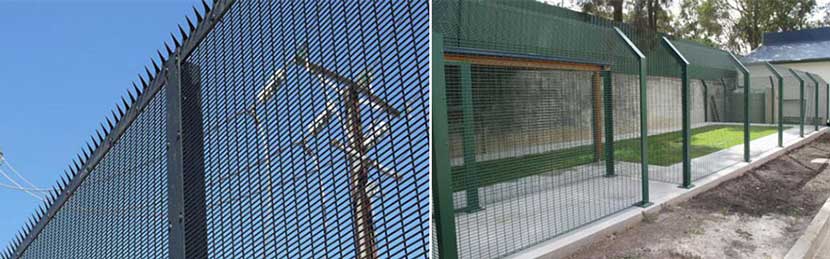

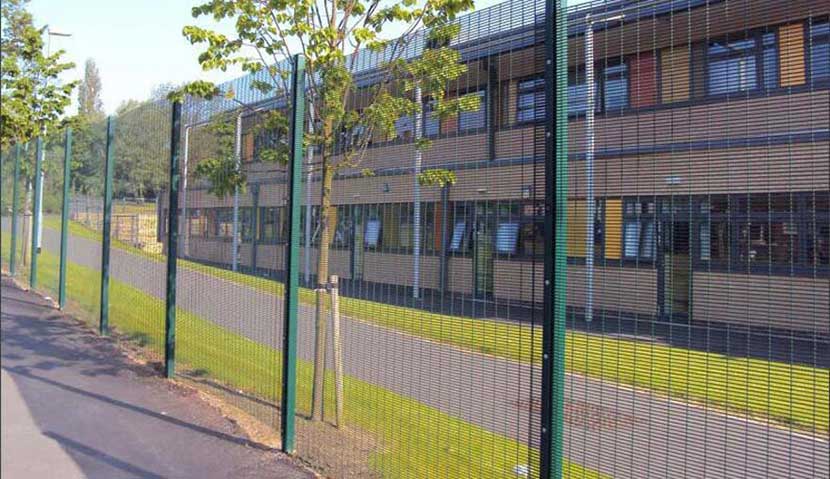

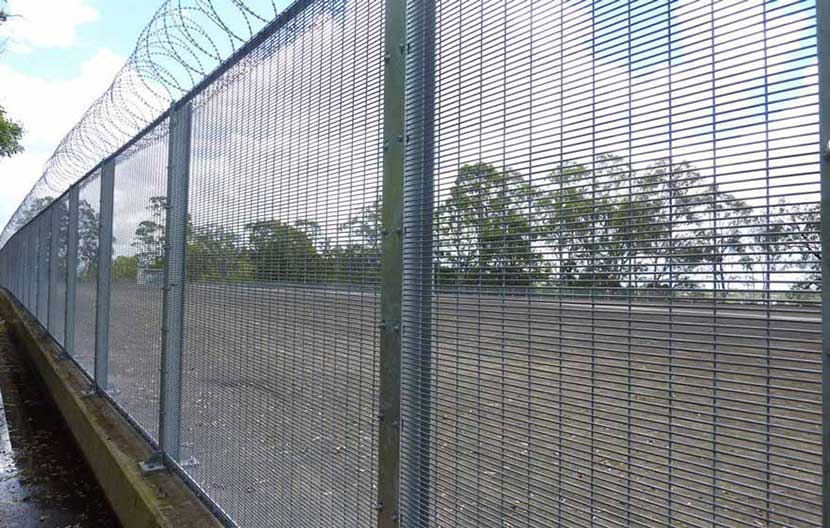

358 anti climb security fence is widely used in fencing systems designed which is maximize to security a site with out impeding visibility. It is incapable to insert hand or tools through the 358 anti climb security mesh fence. Ideal Used for military, airport, power substations and other sites that require high secuity fencing system.

1.‘T’post type anti climb security fence



Wire

diameter

Mesh sizeFence sizeSurface treatmentFasteners
4.0mm12.7x76.2mmWidth:2404mmHeight:2396mm 2550mm2695mm 2994mm 3202mmHDG or powder paintedM8 x 30
T post size: 100 x 6mm -- 125 x 6mm
Flange: 250x250x6mm
Iron angle: 50x50x4mm

2. 'H’post type anti climb security fence

Specification

Panel height1830mm, 2030mm, 2440mm
Panel width2500mm/2400mm
Mesh size76.2 x 12.7mm
Surface treatmentHDG and Powder painted(any color)
Angle iron50x50x4mm
‘H’ post size100x100x6x8mm

3. Square post type anti climb security fence

Specification

Panel height1830mm, 2030mm, 2440mm
Panel width2500mm/2400mm
Mesh size76.2 x 12.7mm
Surface treatmentHDG and Powder painted(any color)
Square post size60x60x3.0mm

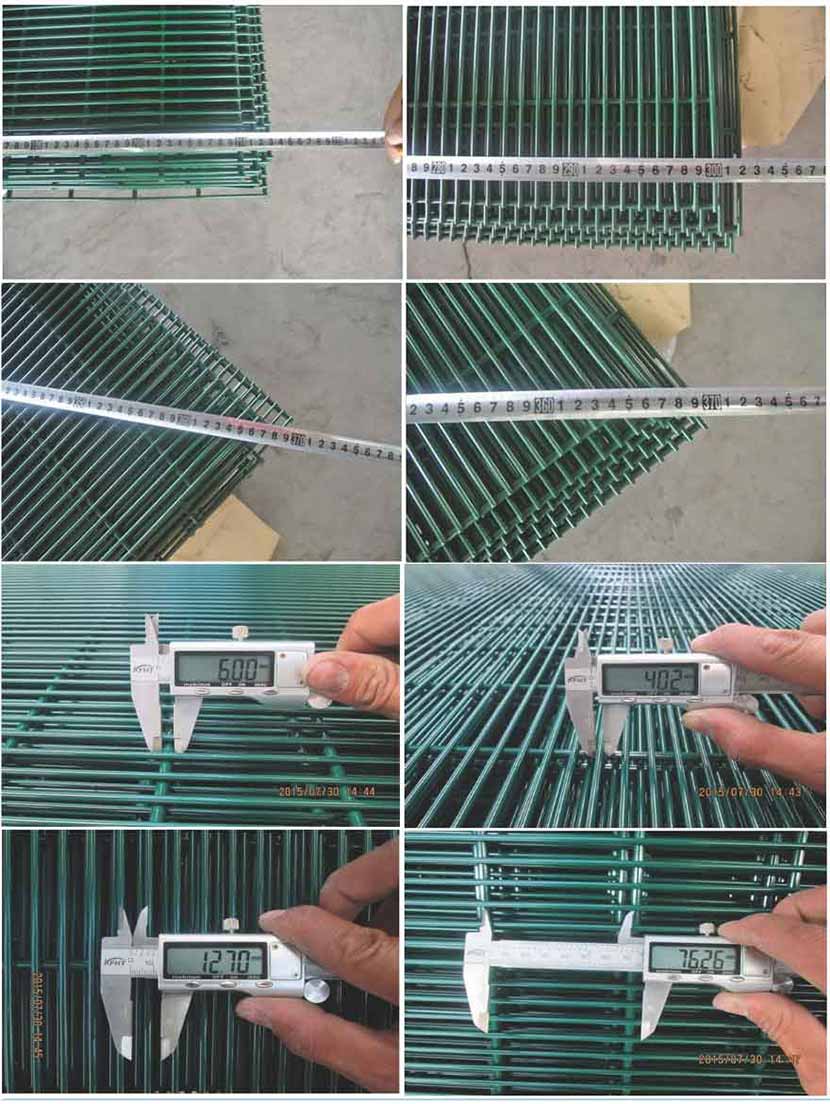

Quality Control

We have professional QA inspect the quality for our clients in every procedureso that we can ensure the high quality for our customers.

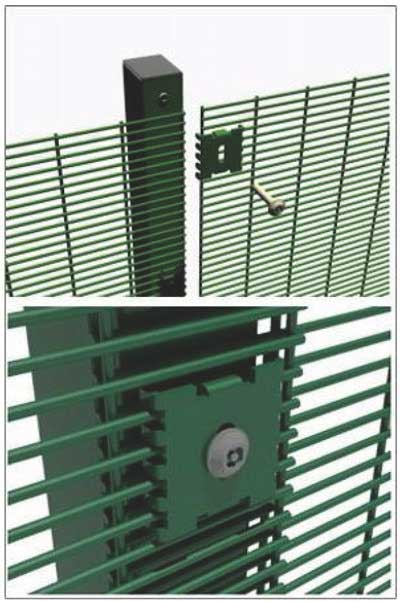

Type 1 - Spider Clips


Mesh:ASO mesh comprising of 12.7mm x 76.2mm mesh with single 4mm vertical wires at 76.2mm centres and 4mm horizontal wires at 12.7mm centres.


Posts:Various RHS post sizes dependent on height


Post to panel fixing:Panels fixed to posts with spider clips with bolt fixings at 400mm centr





Type 2 - Clamp Bar


Two fxing methods are available.


Option A uses V-Beam available overlapping panels and a standard clamp bar to provide the best economy.


Option B uses twin 100mm wide clamp barswith the panels sandwiched betweenand no removable external fxings to provide the most a ractive and easy to install option.

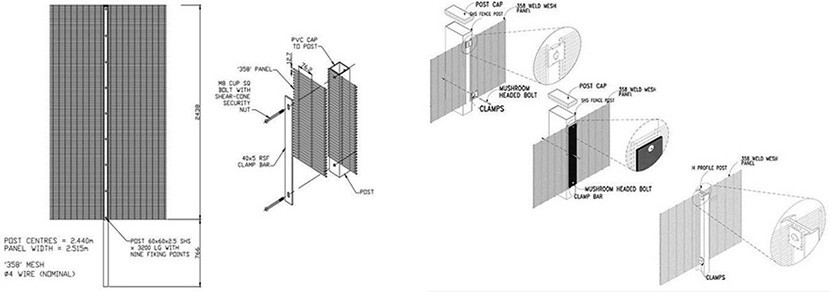

Drawing

We have professional CAD designers to design drawings according to your requests.
